Controlling a Swarm of Robots using Reynolds’ Rules

Collaborator(s): Tanakrit Lertcomepeesin, Fatima Yousif, Vania Katherine Mulia, Sawera Yaseen

Code

Report

Demo Videos

In this exciting project undertaken at the University of Zagreb, our team of four master’s students in Intelligent Field Robotic Systems, including myself, leveraged Craig Reynold’s behavioral rules to control a robot swarm within a 2D simulator Stage. The implementation begins with integrating basic Reynold’s rules such as Separation, Alignment, and Cohesion, followed by additional rules such as Navigation to a certain point and Obstacle avoidance. The robots simulated in the Stage simulator are omnidirectional points, that are evaluated in various maps to analyze their behavior across different environments.

Innovations and Challenges

We embarked on implementing and enhancing Reynolds’ rules—Cohesion, Separation, and Alignment—introducing sophisticated navigation and obstacle avoidance capabilities to the swarm. The challenge was not just in the algorithmic design but in ensuring that these behaviors worked in harmony to simulate natural, flock-like movements in the robots. Through meticulous programming and simulation within the ROS framework and Stage simulator, we achieved a dynamic system capable of navigating complex environments with unprecedented coordination and efficiency.

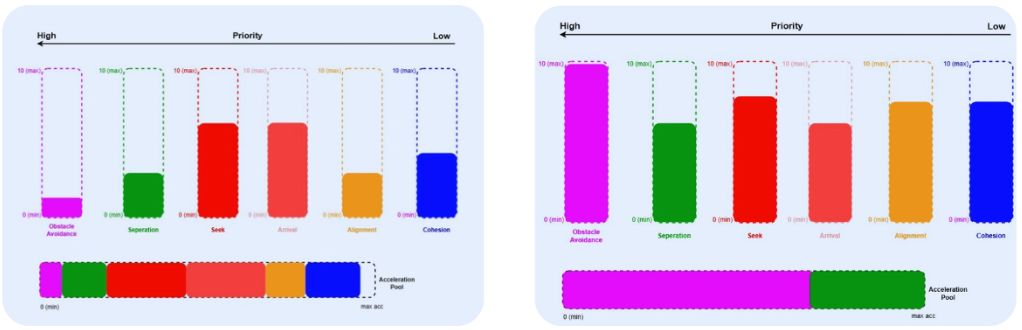

Technical Highlights: Our project’s novelty lies in the intricate balance between foundational flocking behaviors and the advanced algorithms developed for navigation and obstacle avoidance. We conducted extensive simulations across diverse maps, from obstacle-laden courses to intricate mazes, to test the adaptability and robustness of our swarm algorithms. Through these tests, we fine-tuned the algorithms for real-world applicability, addressing potential field versus steer-to-avoid methods for obstacle navigation, and experimenting with prioritized acceleration allocation to manage the swarm’s collective movements effectively.

Results

The results in the Stage simulator:

Analysis their behavior across different environments:

Impact and Future Directions

This project is a significant step towards realizing the potential of swarm robotics in practical applications, from search and rescue operations to autonomous agricultural management. The insights gained from our simulations provide valuable guidelines for transitioning these algorithms from virtual to physical robots, opening new avenues for research and development in swarm intelligence.

As we look to the future, our next phase involves hardware implementation to validate these algorithms’ efficiency in physical environments. This transition from simulation to real-world application represents not just a technical challenge but an opportunity to revolutionize how we perceive and utilize autonomous robotic systems in society.

Personal Contribution

My role in this project spanned algorithm development (obstacle avoidance behavior), simulation testing, and data analysis, providing me with a comprehensive skill set in robotic systems design and teamwork. The experience honed my abilities in problem-solving, innovative thinking, and collaborative research, preparing me for a promising career in robotics and autonomous system development.
